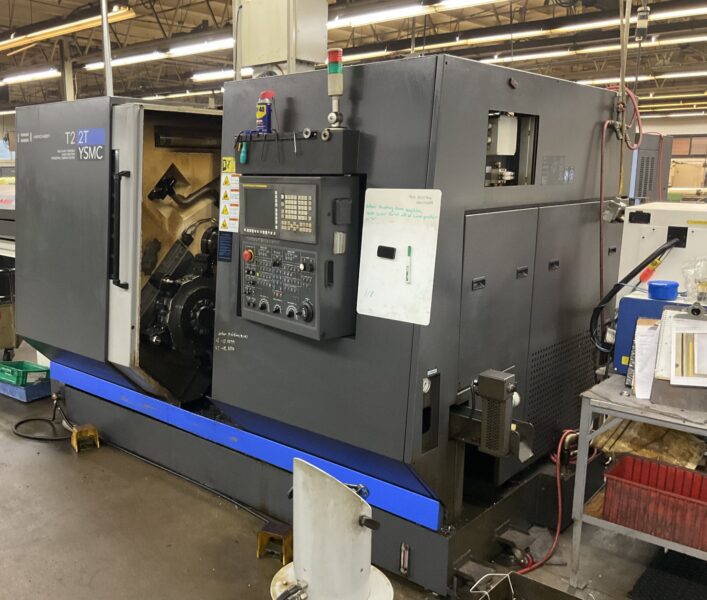

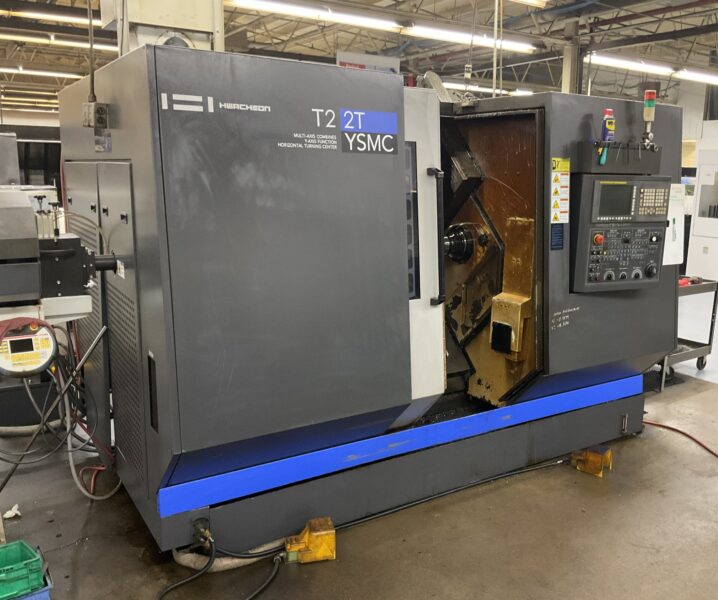

2013 Hwacheon T2-2T YSMC Multi-Axis CNC Lathe, Dual Spindle, Live Tooling CNC LATHE

Swing Over Bed: 34.6″

Max. Cutting Diameter: 18.10″

Standard Cutting Diameter: 11.80″

Max. Cutting Length: 17.40″

Spindle Motor: 20 HP

Hole Through Spindle: 3″

Max. Bar Size: 2.56″

Max. Spindle Speed: 5000 RPM

Machine Dimensions: 122.05″ x 85.83″ x 82.68″

Machine Weight: 21,000 LBS

Equipped with:

 Fanuc 31i-Model A CNC Control with 10.4” LCD Monitor

(2) 8″ Collet Chucks

Tool Presetter

Rigid Tapping

Dual Turrets

Live Tooling

Power On Hours: 31527

Run Time: 1,083

Cutting Time: 3,483

POR
