2008 HEM CYCLONE 16″ X 22″ Fully Automatic Horizontal Bandsaw


Free
More Information
(1) USED HEM MODEL CYCLONE AUTO-C HORIZONTAL BAND SAW WITH AUTO BAR FEED* SN: 1020808 (New in 2008)
Condition: Very Good
Specifications:
Blade Size: 16' x 1-1/4” x .042”
Blade Motor: 7.5 HP 3/60
Rectangular Capacity: 22” x 16”
Bar Feed: 0 to 24” stroke with multiple index
Discharge Support Table: 18”
Miter Capability: One Direction to 45 degrees
Variable Blade Speed:
Coolant Capacity:
Blade Guides: Carbide
Air Requirement: 85 PSI
Machine Weight: 3,500 lbs.
Bar Feed Weight: 1,500 lbs.
Machine Dimensions: 110” x 116” with Bar Feed
Equipped With:
Variable Speed Blade Drive Adjustable Clamping Force
Easy View All Function Control Adjustable Feed Rate
Automatic Operation Flood Coolant
Blade Brush Broken Blade Shut Off
Out of Stock Function Manual Blade Tension
(2) Hold-down Fixtures Bundle Capability
PRICE, F.O.B. Wisconsin Rapids, Wi;    $22,900
Freight rate available upon request
*Catalog specifications subject to verification.
Thank you for your business.

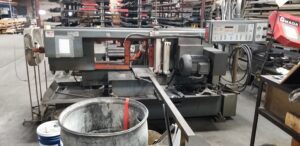

Photos were taken  in the shop., under power.
  • 2008 hem cyclone auto c hbs 16 x 22 automatic 2 9c420680
  • 2008 hem cyclone auto c hbs 16 x 22 automatic 50e83597
  • 2008 hem cyclone auto c hbs 16 x 22 automatic. mfg. tag photo e970a7d6
